360 notch gear (by Ali)
Greetings, fellow solvers!

Hoping to get some help with a more efficient version of the attached 360 notch gear. The attached file just has too many items in it. I needed to erase the extrusion to get it to fit the file size limit of this forum. With the extrusion, it comes out to ~14 MB and ~11k triangles. I know it is a lot of notches so maybe it is the best that can be done.


Sincerely,

Ali Kakakhel
Wed Apr 23 2025, 23:38:07, download attachment 360-notch-gear-3.slvs

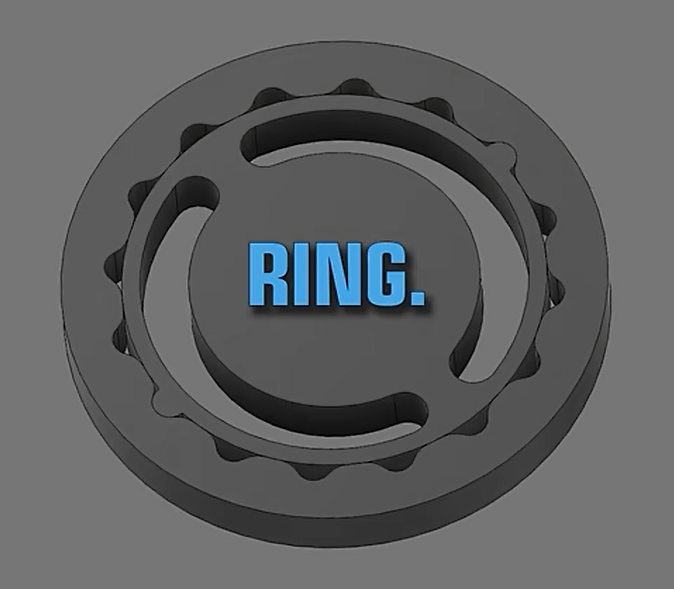

Illustration of Goal (by Ali)
Just wanted to add an image to help explain my ultimate goal. I want to make something like the imaged mechanism. I want to make 360 notches. (of course my part would need a larger diameter)
Thu Apr 24 2025, 21:16:36, download attachment Inner Outer Notch System.png
